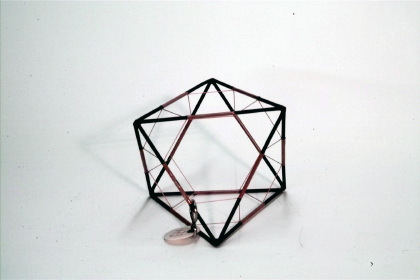

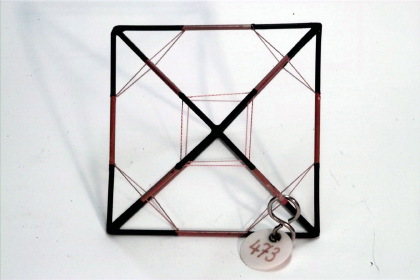

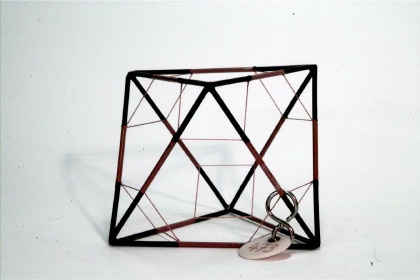

Octahedron with inscribed truncated octahedron

OctahedronThe octahedron is one of the five Platonic solids, see also model 702.

Inscribed (6+8)-plane polygon with 6·4 vertices The solid inscribed in the octahedron is a truncated octahedron. The truncated octahedron arises from the octahedron by truncating its vertices. By truncating the vertices six new squares are created and the previously existing triangles are transformed to eigt hexagons. The truncated octahedron is circumscribed by

6 squares + 8 hexagons = 14 faces.

It has 6 · 4 = 24 vertices and 36 edges. At each vertice one triangle and two hexagons are meeting (4,6,6).

The truncated octahedron is one of 13 Archimedean solids, see also 482.

Tetrakis hexahedron The truncated octahedron is polar (dual) to the tetrakis hexahedron. To create this new solid a sphere is inscribed in the truncated octahedron such that the sphere touches each of the faces in exactly one point. These points of contact create the vertices of the dual solid. By connecting these 14 vertices 24 triangles are formed. These triangles are the faces of the triakis octahedron. The number of edges remains the same during the transformation into the dual solid, while the number of vertices and faces is exchanged.

There are 11 Archimedean solids in the collection.

The truncated icosidodecahedron and the lost truncated cuboctahedron are not included in the collection.
